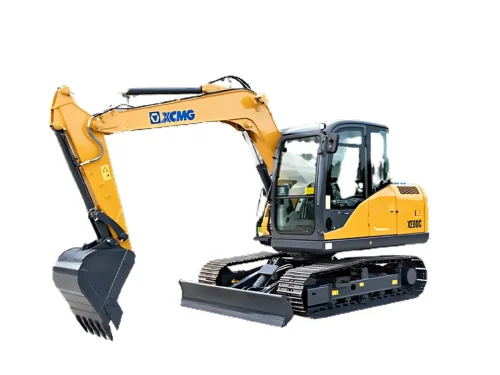

XE80C Basic parameters
- Operation weight: 7460kg.
- Engine: Cummins 4JG1TPC engine, direct injection, 4-stroke, water-cooled, turbocharged, displacement 3.059L, rated power 53.8kW/2150rpm, maximum torque 255N・m/1800rpm.
- Travel system: crawler travel, high speed 4.4km/h, low speed 2.4km/h, climbing ability 35°.
- Bucket capacity: 0.3m³.
- Digging force: bucket digging force 51.2kN, bucket digging force 34.2kN, maximum traction force 68.5kN.
- Slewing system: slewing speed 11r/min, slewing system pressure 20.6MPa.
XE80C C Series Features
Powerful power
- Advanced hydraulic system
- High working efficiency
- Comfortable operation
- Easy maintenance
- Tailless design
- Versatility
PRODUCT SPECIFICATIONS
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | Kg | 7680 |
| Rated power | kW/rpm | 42.4 |
| Engine model | – | Yanmar 4TNV94L |
| Bucket capacity | m³ | 0.33 |
| Emission standard | – | National Stage Ⅲ |
| Maximum torque/speed | N.m | 222.5/1600 |
| Displacement | L | 2.615 |
| Travel speed | km/h | 5.4/2.9 |
| Swing speed | r/min | 10 |
| Bucket digging force | kN | 57 |
| Arm digging force | kN | 38 |
